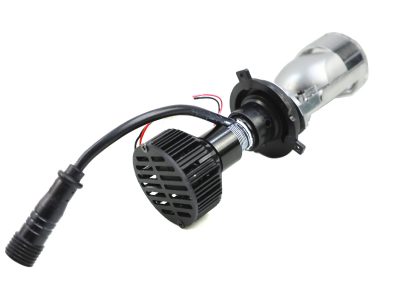

W04 LED headlight bulbs
Specification
Input electric current: 1.5A(Typ)±5%
Input voltage: 12V
Output electric current: 1.45A ± 0.5A
Output voltage: 9.0V ± 0.5V
Efficiency: 85-90%
Maximum temperature of electronic parts:125°C

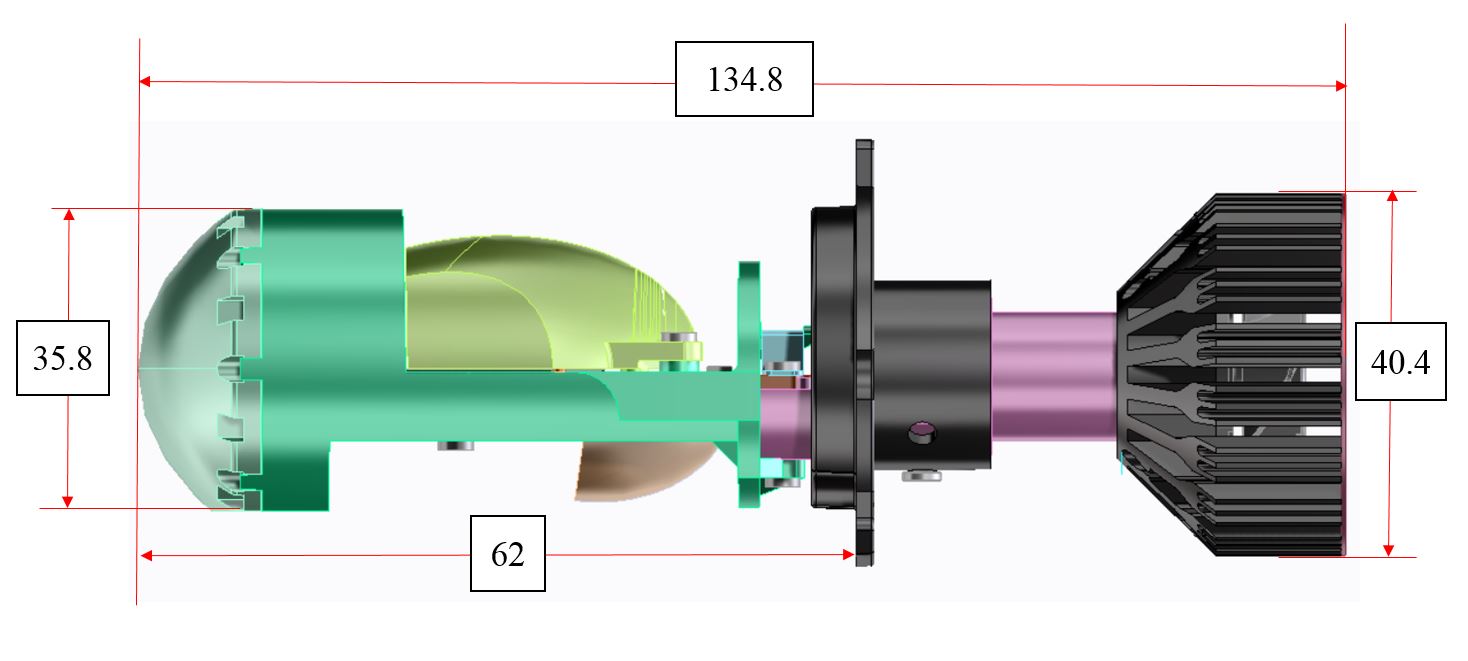

Size:61*34*23mm
Over electric current protection:YES
LED Driver test specification
1. High temperature and high pressure test: 60°C, 16V, 100HR.
2. Low temperature and low pressure test: -40°C, 9V, 100HR.
3. light bulb temperature cycle test: thermostat setting: -30°C ~ 70°C,light bulb fully operates 72HR.
4. Pressure test 25 °C, 18V, 100HR.

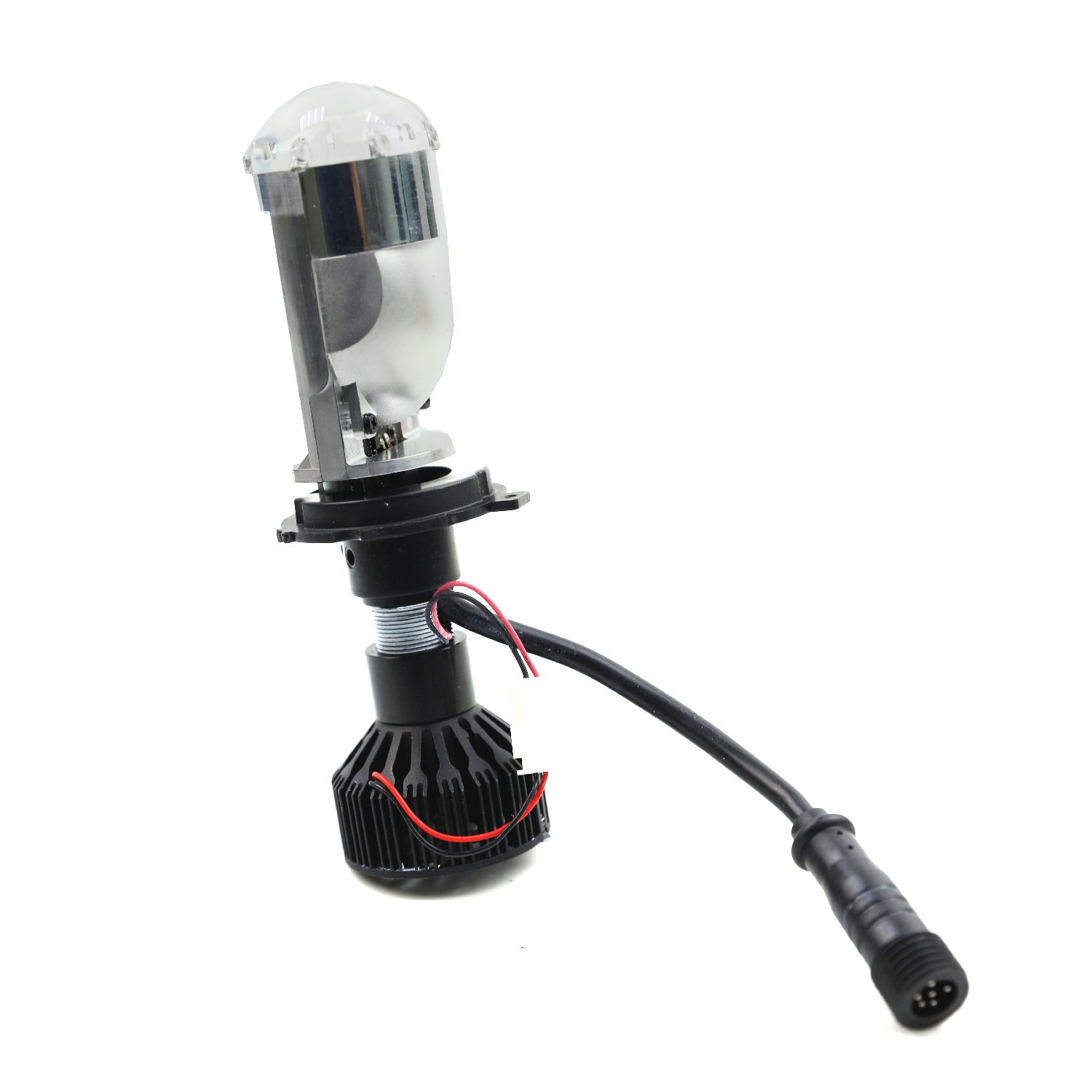

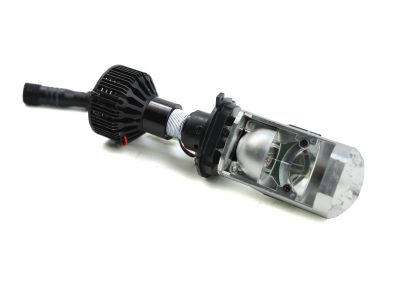

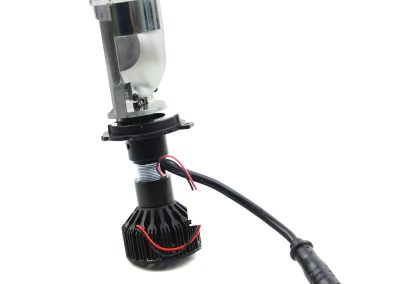

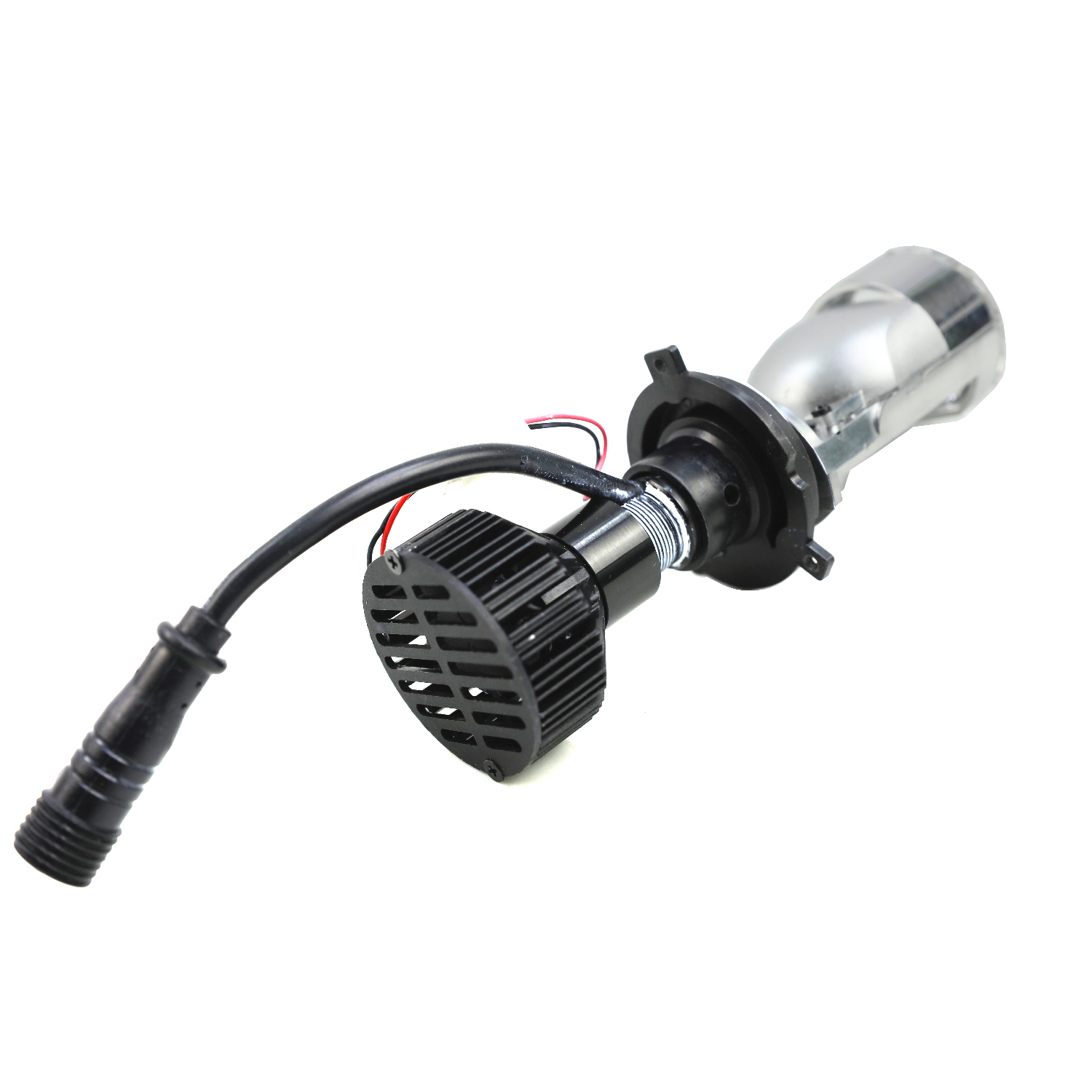

Real view – Headlight bulbs

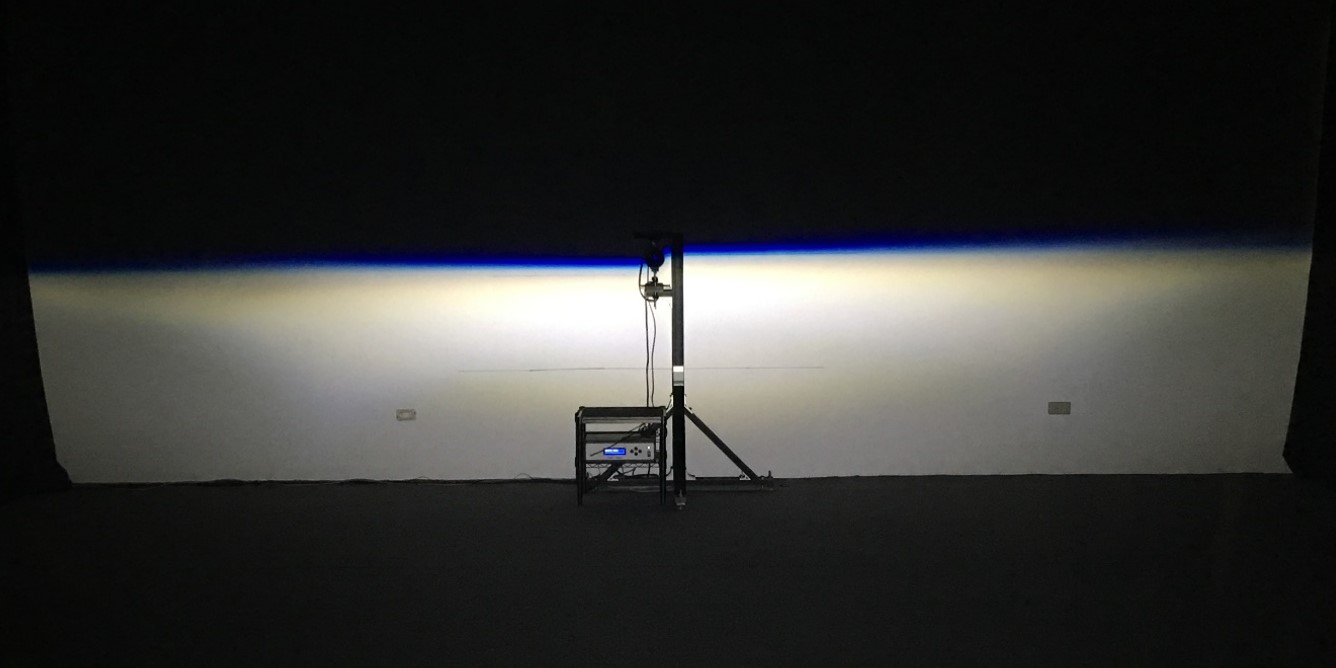

Low beam

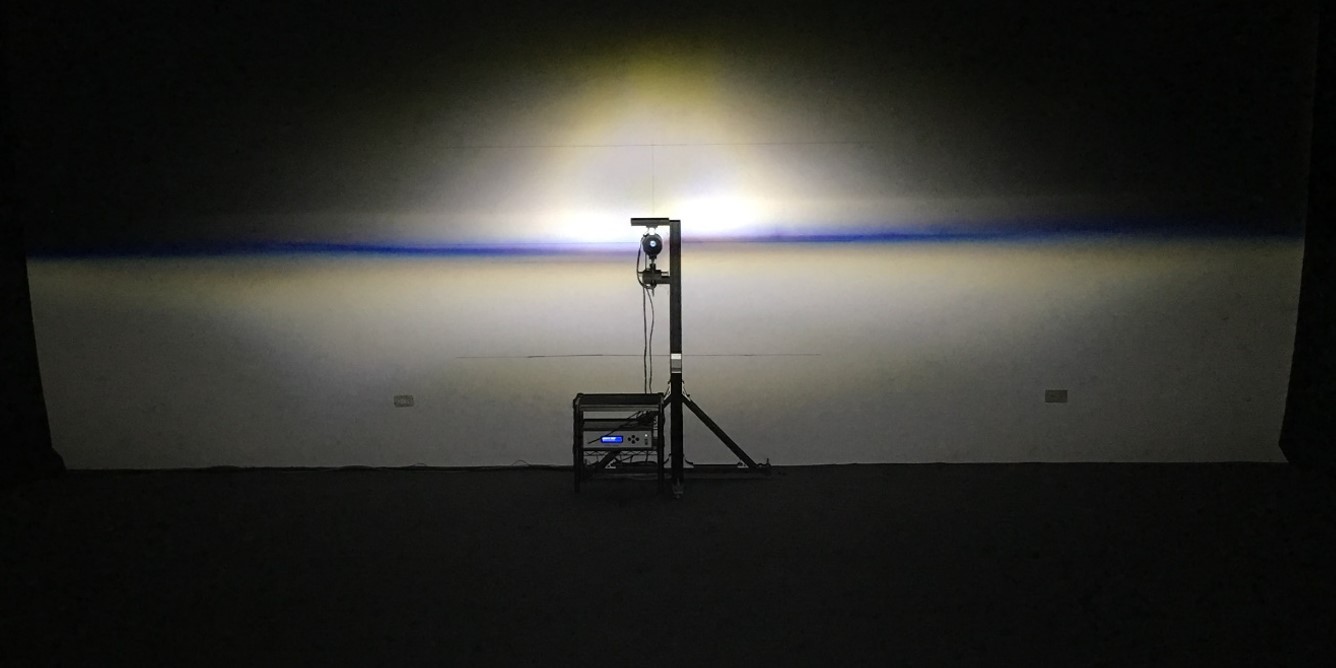

High beam

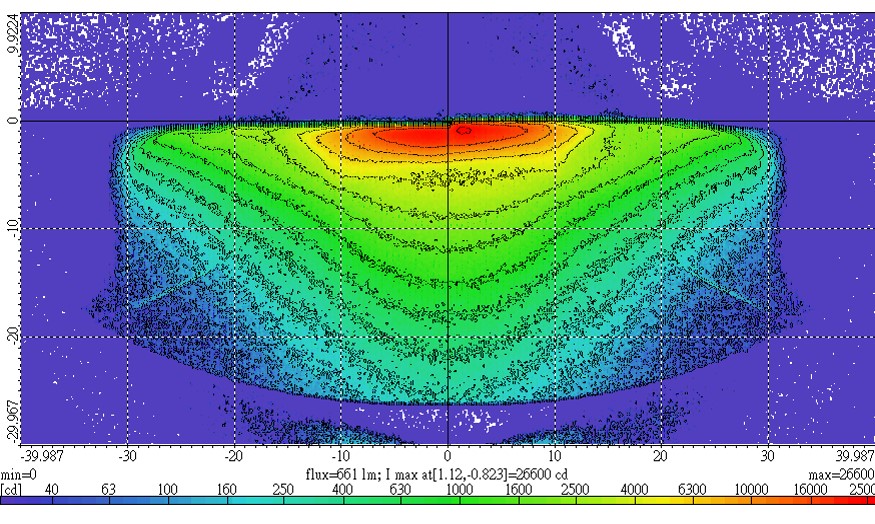

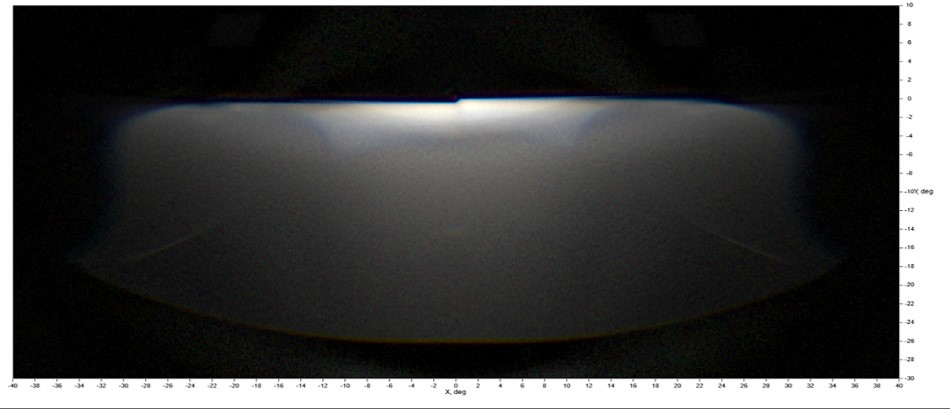

Light pattern, Low beam

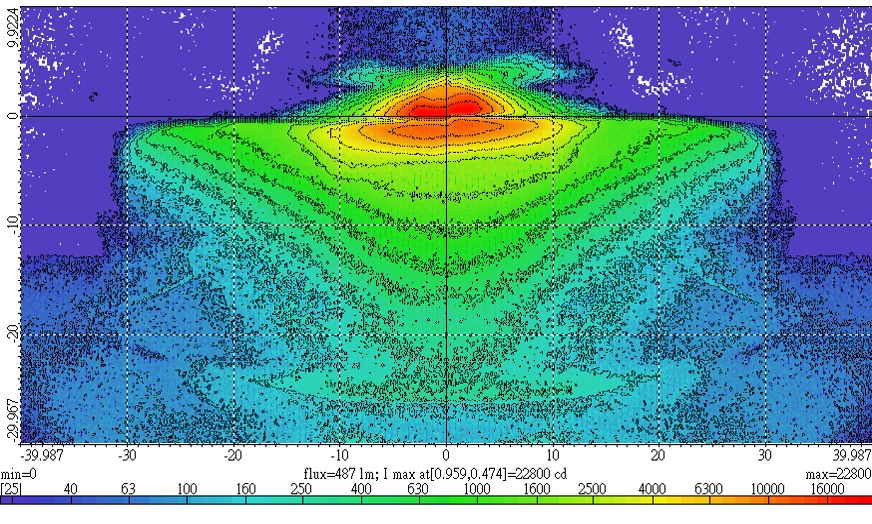

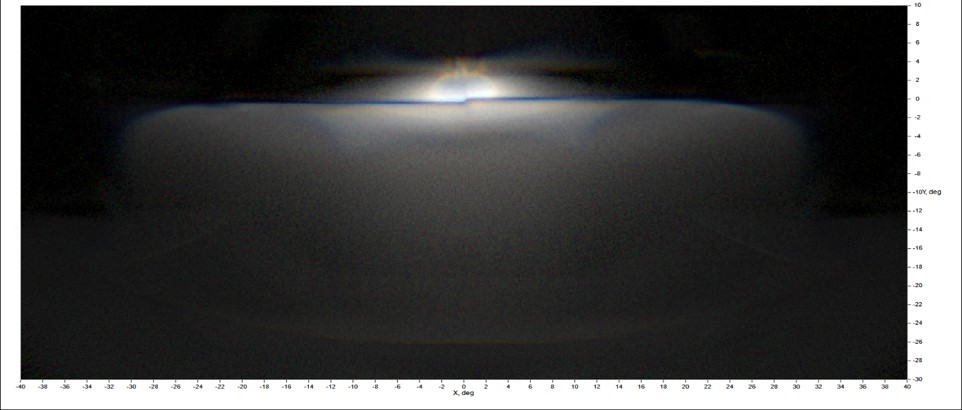

Light pattern, High beam
Road lighting simulation
Low beam

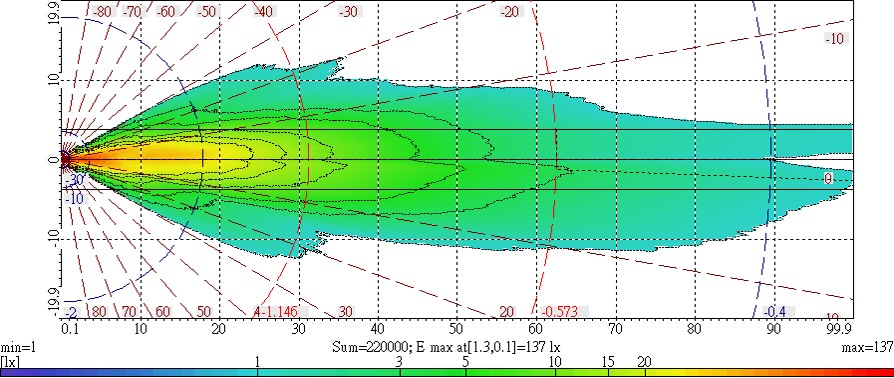

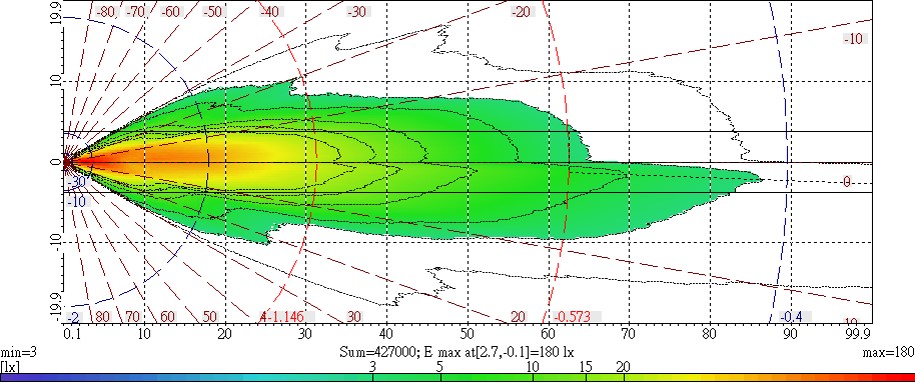

Road lighting simulation
High beam

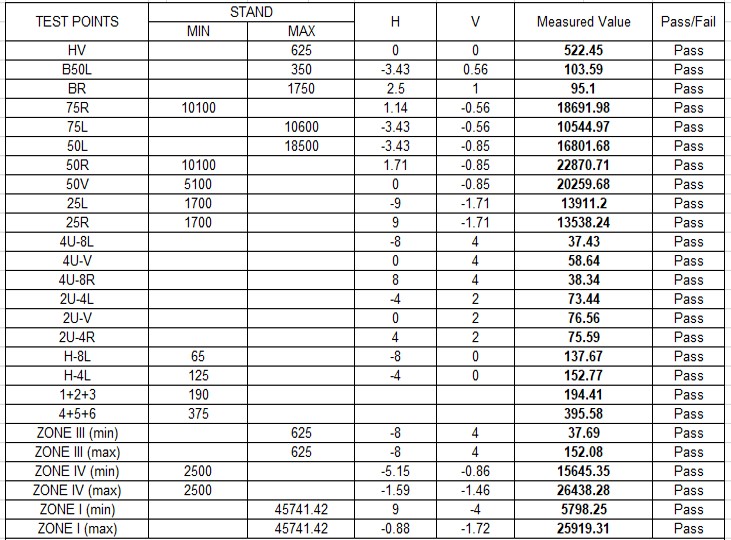

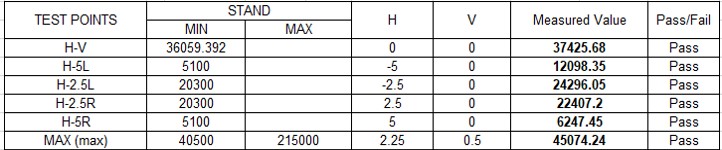

W01 Law Data Headlight Bulbs, Low Beam
R112 CLASS B_L-BEAM
W01 Law Data Headlight Bulbs, Low Beam
R112 CLASS B_H-BEAM
