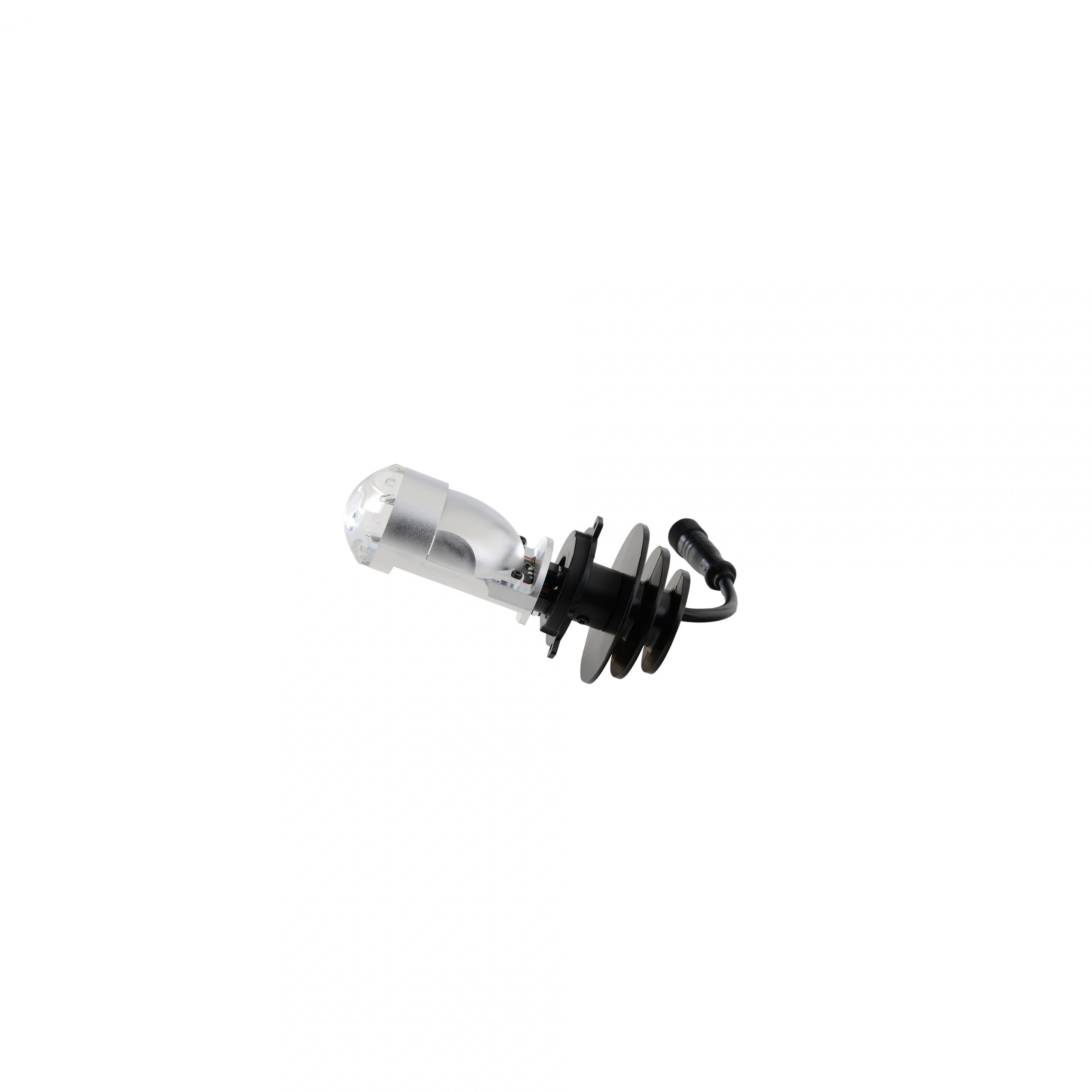

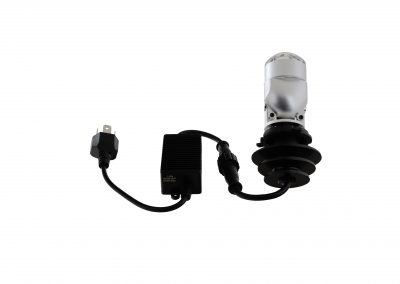

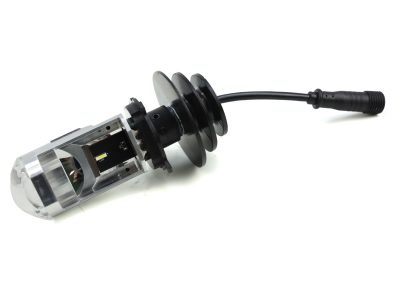

W02 LED headlight bulbs
Specification
Input electric current: 1A(Typ)±5%
Input voltage: 12V(9~16V)
Output electric current: 0.9A ± 0.1A
Output voltage: 9.0V ± 0.5V
Efficiency: 85-90%
Maximum temperature of electronic parts:125°C

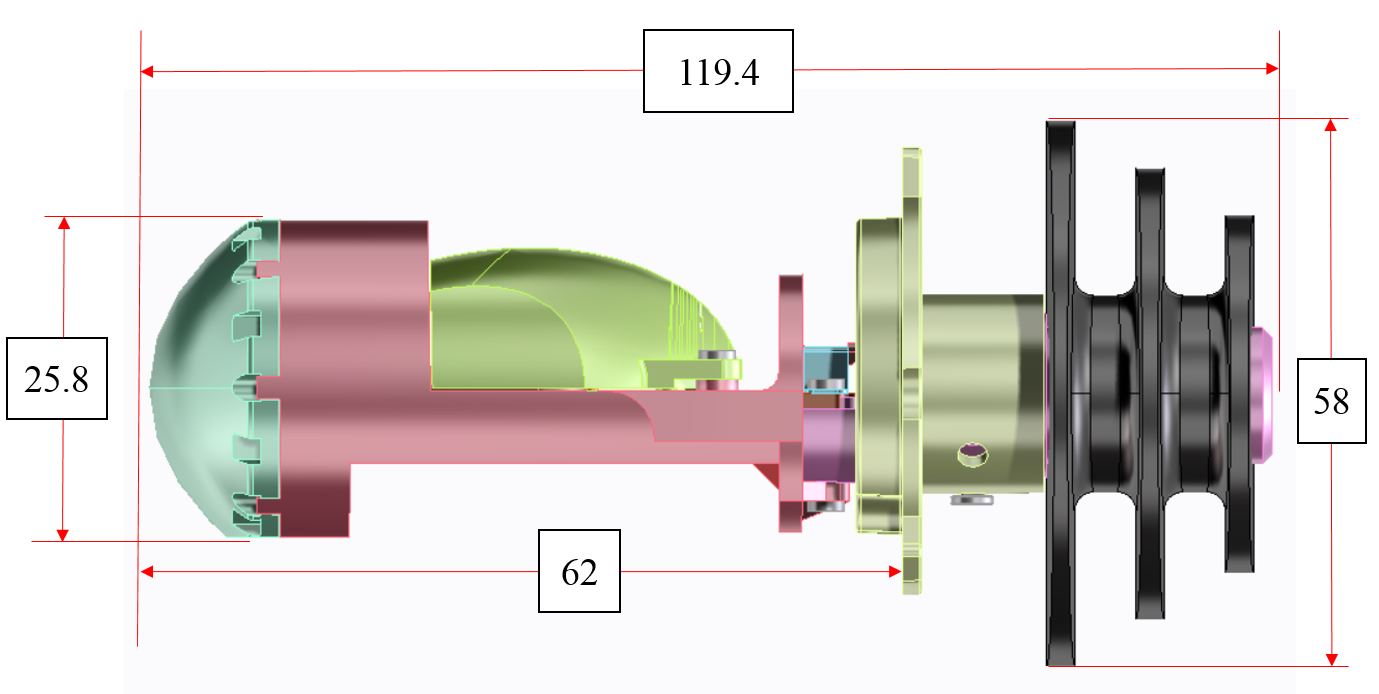

Size:61*34*23mm
Over electric current protection:YES
LED Driver test specification
1. High temperature and high pressure test: 60°C, 16V, 100HR.
2. Low temperature and low pressure test: -40°C, 9V, 100HR.
3. light bulb temperature cycle test: thermostat setting: -30°C ~ 70°C,light bulb fully operates 72HR.
4. Pressure test 25 °C, 18V, 100HR.

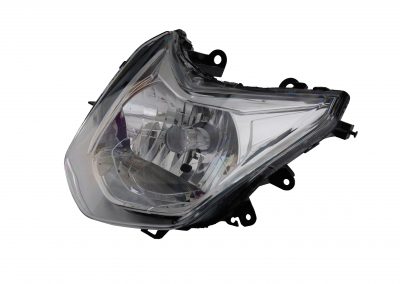

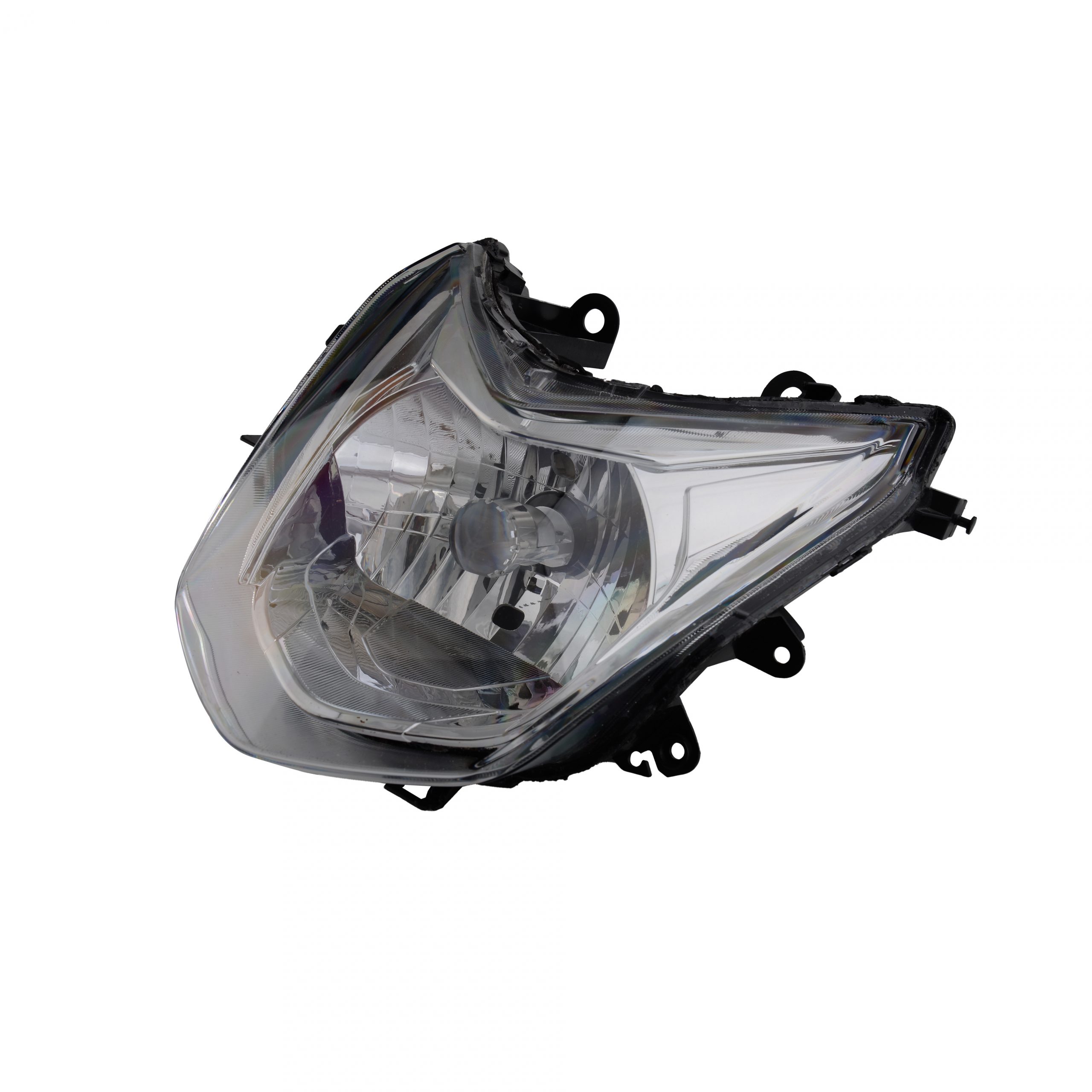

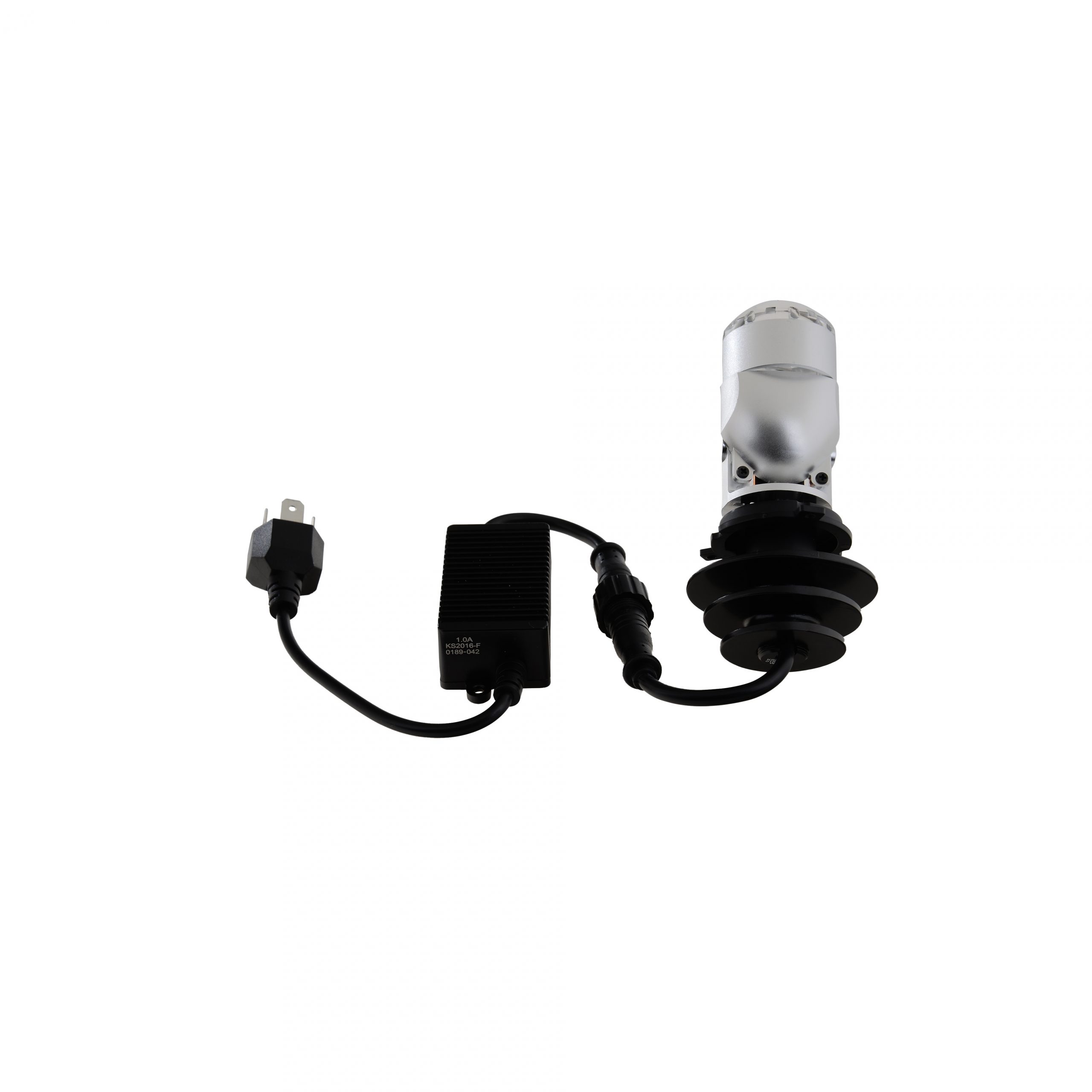

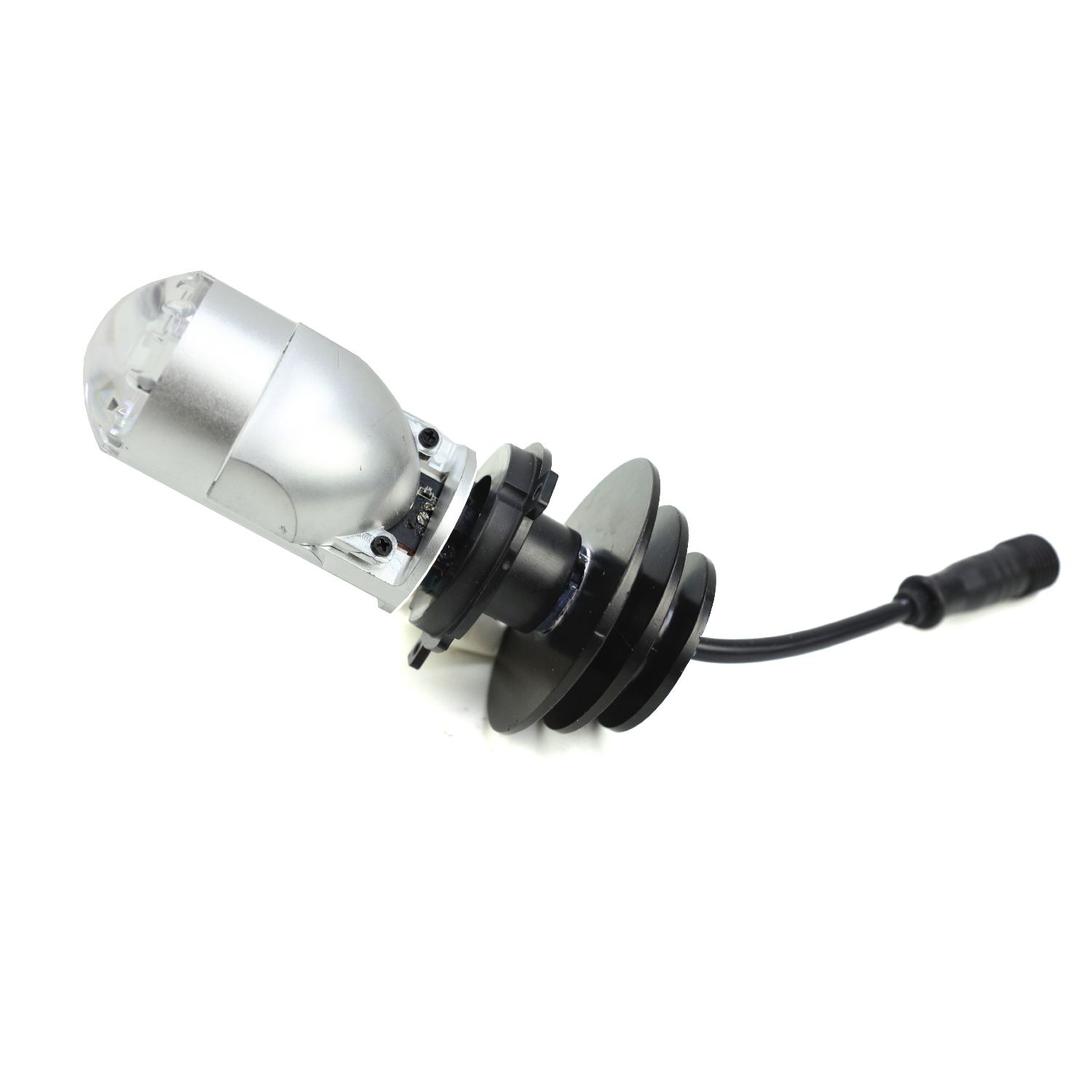

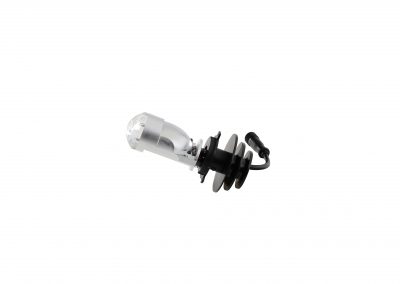

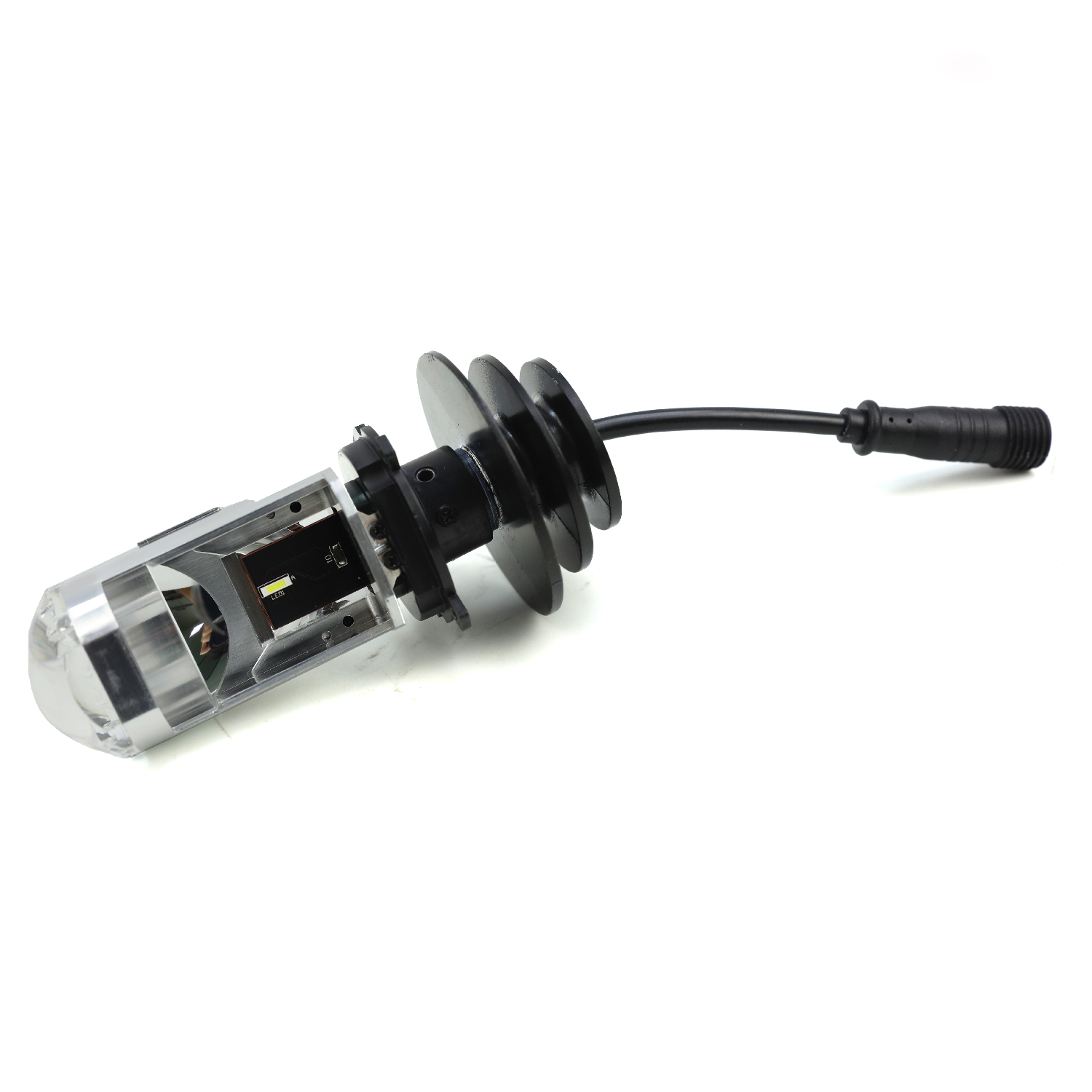

Real view – Headlight bulbs
Low beam

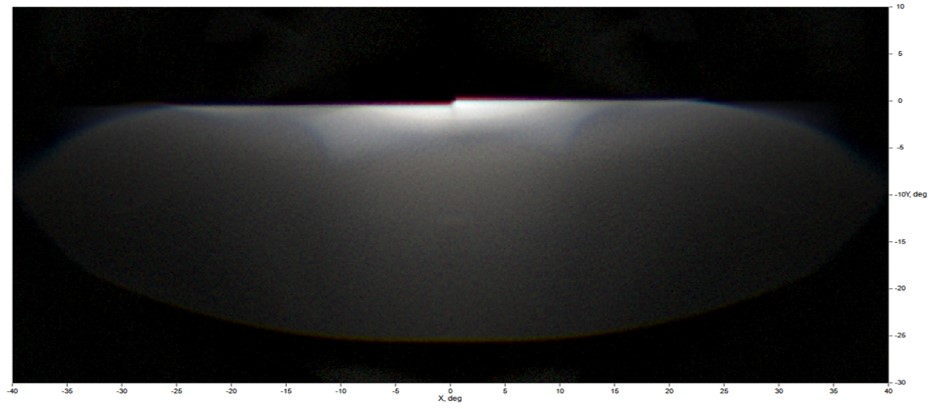

Light pattern, Low beam

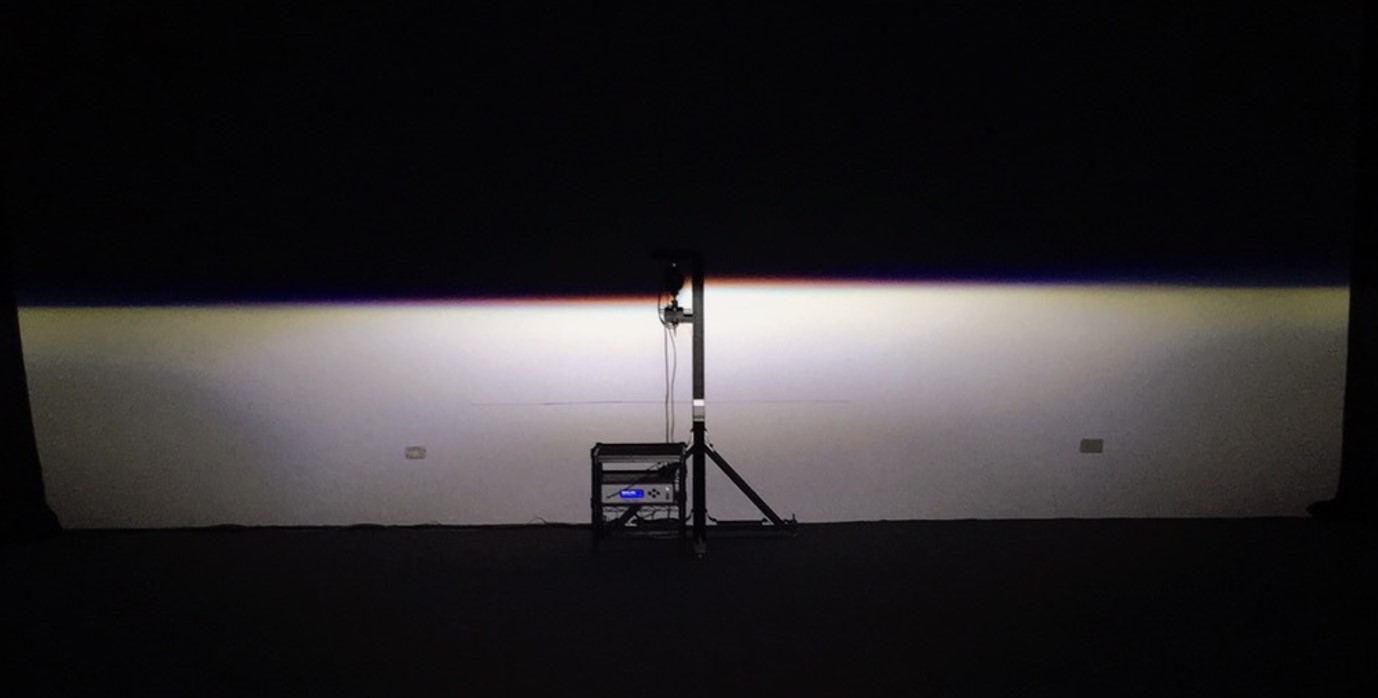

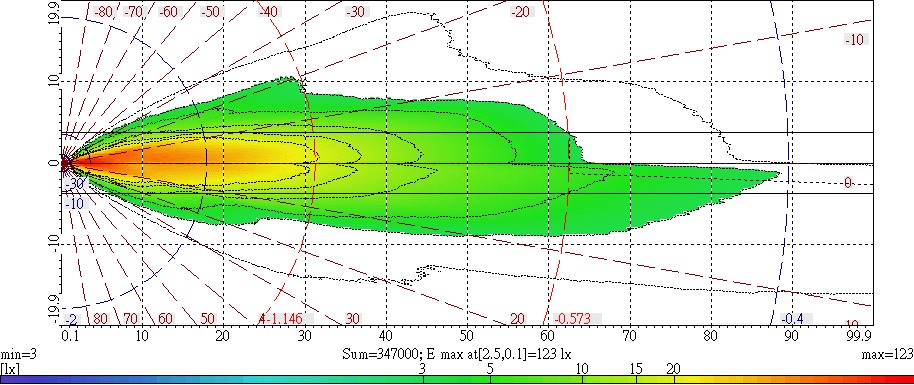

Road lighting simulation
Low beam

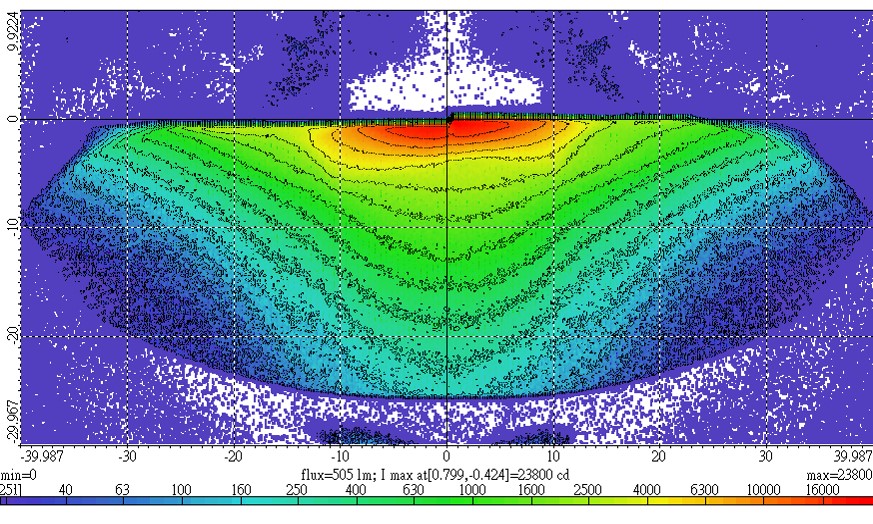

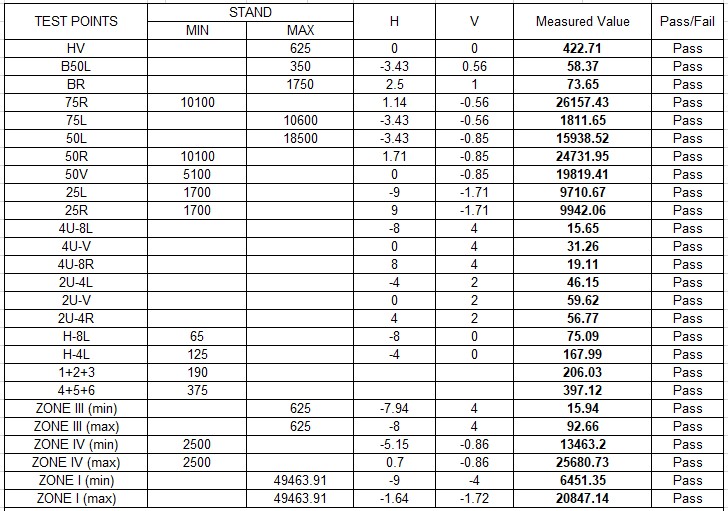

W01 Law Data Headlight Bulbs, Low Beam
R112 CLASS B_L-BEAM
